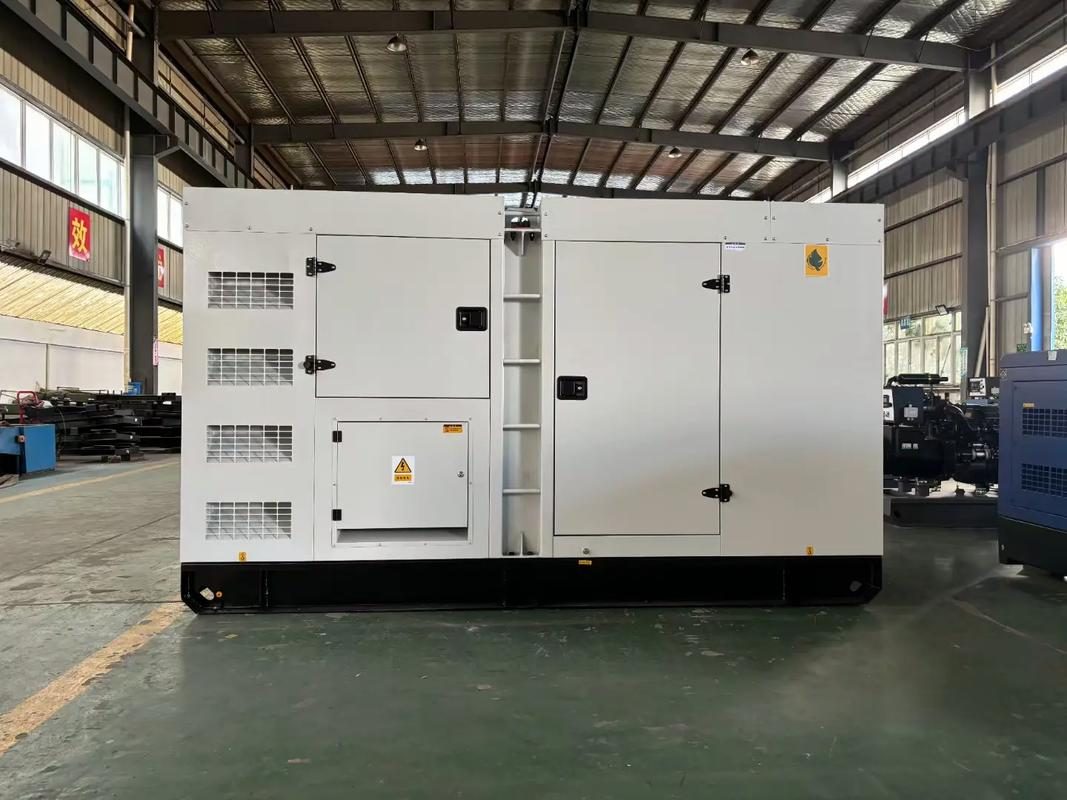

Silent canopy type
Weather-proof low-noise enclosure for urban and building use
Home / Diesel Generator Sets
Diesel Generator Sets 16 – 2400 kW
HC series on Yuchai & Cummins engine platforms · EUR-5 emission · 30,000 h overhaul · brushless copper alternator · 400 V / 10.5 kV · 50/60 Hz
Engine platforms
Two world-class engines, one uncompromising standard

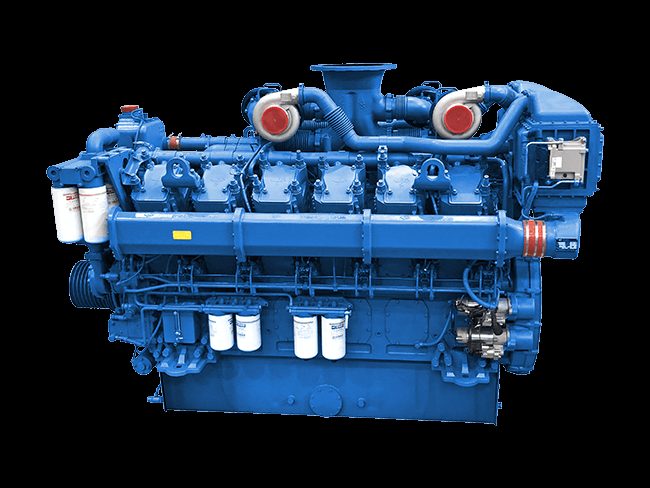

Yuchai platform
Established 1951, CE certified with China telecom-industry tier certification. Strong power, excellent fuel economy and high reliability. Exports cover 180+ countries with 800+ overseas service outlets — spare parts are never far away.

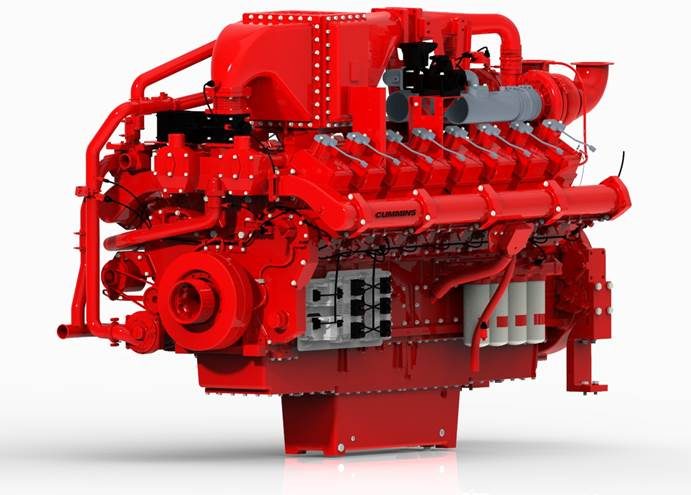

Cummins platform
High-pressure common rail (1600 bar) for fast response and low noise; strong fuel adaptability; intelligent electronic control with self-diagnosis, alarms and remote monitoring; stable performance across altitudes and loads.
Selection table
HC series, 16 – 2400 kW
All models: EUR-5 emission, 30,000 h overhaul interval. Scroll the table for the full range.
Yuchai series · 16 – 2400 kW
| Model | Prime (kW) | Standby (kW) | Cyl. | Fuel (g/kWh) | Emission | Overhaul (h) | Size (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HC18GF | 16 | 18 | 4 | ≤200 | EUR-5 | 30000 | 1.4×0.6×1.0 | 580 |
| HC20GF | 20 | 22 | 4 | ≤200 | EUR-5 | 30000 | 1.4×0.6×1.0 | 600 |
| HC25GF | 25 | 27 | 4 | ≤200 | EUR-5 | 30000 | 1.4×0.6×1.0 | 650 |
| HC32GF | 32 | 35 | 4 | ≤200 | EUR-5 | 30000 | 1.4×0.6×1.0 | 650 |
| HC50GF | 45 | 50 | 4 | ≤200 | EUR-5 | 30000 | 1.8×0.7×1.1 | 750 |
| HC55GF | 55 | 60 | 4 | ≤205 | EUR-5 | 30000 | 1.8×0.8×1.2 | 900 |
| HC63GF | 63 | 70 | 4 | ≤205 | EUR-5 | 30000 | 1.8×0.8×1.2 | 1000 |
| HC72GF | 72 | 80 | 4 | ≤205 | EUR-5 | 30000 | 2.0×0.9×1.2 | 1200 |
| HC85GF | 85 | 94 | 4 | ≤205 | EUR-5 | 30000 | 2.0×0.9×1.3 | 1200 |
| HC100GF | 100 | 110 | 4 | ≤200 | EUR-5 | 30000 | 2.0×0.9×1.3 | 1300 |
| HC120GF | 115 | 125 | 4 | ≤205 | EUR-5 | 30000 | 2.0×1.0×1.3 | 1450 |
| HC120GF | 120 | 132 | 6 | ≤205 | EUR-5 | 30000 | 2.0×0.9×1.3 | 1700 |
| HC150GF | 120 | 132 | 6 | ≤200 | EUR-5 | 30000 | 2.0×0.9×1.3 | 1800 |
| HC160GF | 150 | 165 | 6 | ≤200 | EUR-5 | 30000 | 2.6×1.0×1.4 | 2300 |
| HC180GF | 165 | 180 | 6 | ≤200 | EUR-5 | 30000 | 2.6×1.0×1.4 | 2500 |
| HC200GF | 200 | 220 | 6 | ≤200 | EUR-5 | 30000 | 2.6×1.0×1.5 | 2800 |
| HC250GF | 250 | 280 | 6 | ≤195 | EUR-5 | 30000 | 3.1×1.2×1.8 | 2700 |
| HC300GF | 270 | 300 | 6 | ≤195 | EUR-5 | 30000 | 3.1×1.2×1.8 | 2750 |
| HC300GF | 300 | 330 | 6 | ≤195 | EUR-5 | 30000 | 3.2×1.2×1.8 | 2850 |
| HC320GF | 320 | 350 | 6 | ≤195 | EUR-5 | 30000 | 3.3×1.2×1.8 | 3000 |
| HC400GF | 360 | 400 | 6 | ≤195 | EUR-5 | 30000 | 3.3×1.3×1.8 | 3200 |
| HC460GF | 460 | 500 | 6 | ≤195 | EUR-5 | 30000 | 3.5×1.3×1.9 | 3800 |
| HC500GF | 500 | 550 | 6 | ≤195 | EUR-5 | 30000 | 3.5×1.5×2.0 | 4200 |
| HC550GF | 550 | 600 | 6 | ≤195 | EUR-5 | 30000 | 3.6×1.5×2.0 | 4300 |
| HC600GF | 600 | 660 | 6 | ≤195 | EUR-5 | 30000 | 3.8×1.5×2.1 | 4500 |
| HC640GF | 640 | 700 | 6 | ≤195 | EUR-5 | 30000 | 4.4×1.6×2.1 | 6500 |
| HC728GF | 728 | 800 | 6 | ≤195 | EUR-5 | 30000 | 4.5×1.8×2.5 | 7000 |
| HC800GF | 800 | 880 | 6 | ≤195 | EUR-5 | 30000 | 4.5×1.8×2.5 | 7500 |
| HC900GF | 900 | 1000 | 6 | ≤195 | EUR-5 | 30000 | 4.5×2.2×2.5 | 8000 |
| HC1000GF | 1000 | 1100 | 6 | ≤195 | EUR-5 | 30000 | 4.6×2.2×2.5 | 8500 |
| HC1200GF | 1200 | 1320 | 12 | ≤195 | EUR-5 | 30000 | 5.0×2.5×2.6 | 10000 |
| HC1360GF | 1360 | 1500 | 12 | ≤195 | EUR-5 | 30000 | 5.0×2.5×2.6 | 11000 |
| HC1500GF | 1500 | 1650 | 12 | ≤195 | EUR-5 | 30000 | 5.0×2.5×2.6 | 12000 |
| HC1650GF | 1650 | 1800 | 12 | ≤195 | EUR-5 | 30000 | 5.0×2.6×2.6 | 12500 |
| HC1800GF | 1800 | 2000 | 12 | ≤195 | EUR-5 | 30000 | 5.0×2.6×2.6 | 13000 |
| HC2000GF | 2000 | 2200 | 16 | ≤195 | EUR-5 | 30000 | 6.5×3.0×3.0 | 16500 |
| HC2200GF | 2200 | 2420 | 16 | ≤195 | EUR-5 | 30000 | 6.5×3.0×3.0 | 17000 |
| HC2400GF | 2400 | 2640 | 16 | ≤195 | EUR-5 | 30000 | 6.5×3.0×3.0 | 17600 |
Cummins series · 200 – 1600 kW
| Model | Prime (kW) | Standby (kW) | Cyl. | Fuel (g/kWh) | Emission | Overhaul (h) | Size (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| NTA855-DF-G1A | 200 | 220 | 4 | ≤230 | EUR-5 | 28000 | 2.0×1.0×1.6 | 2600 |
| NTA855-DF-G1B | 250 | 280 | 6 | ≤220 | EUR-5 | 28000 | 2.0×1.0×1.6 | 2750 |
| KTA19-DF-G2 | 300 | 330 | 6 | ≤220 | EUR-5 | 28000 | 2.0×1.5×1.6 | 2850 |
| KTA19-DF-G3A | 400 | 450 | 6 | ≤220 | EUR-5 | 28000 | 2.6×1.5×1.6 | 3000 |
| KTAA19-DF-G6 | 460 | 520 | 6 | ≤220 | EUR-5 | 28000 | 2.6×1.5×1.9 | 3200 |
| KT38-DF-G | 500 | 560 | 12 | ≤215 | EUR-5 | 28000 | 3.0×2.0×1.9 | 3800 |
| KTA38-DF-G2 | 600 | 660 | 12 | ≤215 | EUR-5 | 28000 | 3.5×2.0×2.6 | 4000 |
| KTA38-DF-G5 | 800 | 880 | 12 | ≤215 | EUR-5 | 28000 | 3.5×2.0×2.6 | 7000 |
| KTA50-DF-G3 | 1000 | 1100 | 16 | ≤215 | EUR-5 | 28000 | 4.6×2.5×2.6 | 8500 |
| KTA50-DF-G8 | 1100 | 1320 | 16 | ≤210 | EUR-5 | 28000 | 4.8×2.5×2.6 | 9000 |
| KTA50-DF-GS8 | 1180 | 1320 | 16 | ≤210 | EUR-5 | 28000 | 5.0×2.5×2.6 | 10000 |
| KTA50-DF-G15X | 1340 | 1500 | 16 | ≤210 | EUR-5 | 28000 | 5.0×2.5×2.6 | 11000 |
| KTA50-DF-G16B | 1600 | 1650 | 16 | ≤205 | EUR-5 | 28000 | 5.0×2.5×2.6 | 12000 |
- 50 Hz standard (60 Hz customisable), power factor 0.8 lagging, rated voltage 400 V/230 V or 10 kV, brushless (pure-copper) excitation, three-phase four-wire.
- Prime power per GB/T 2820-97 (eqv ISO 8528): unlimited running within rated range, 10% overload for 1 h per 12 h of operation. Standby power is the maximum emergency limit (no overload).
Configurations
Four enclosure types for every site
Open frame type
Cost-effective for plant rooms with acoustic treatment

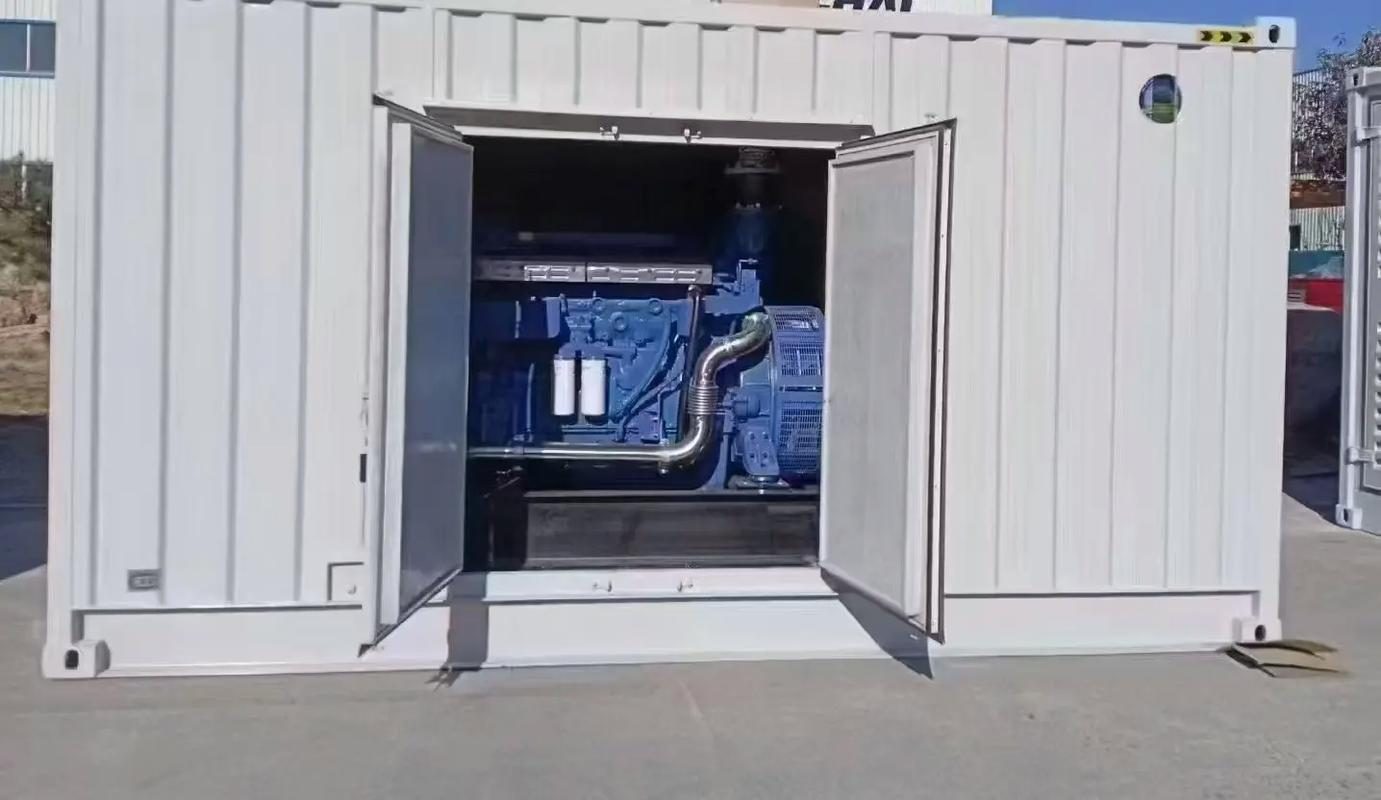

Containerised type
20/40 ft ISO container, plug-and-play for large power

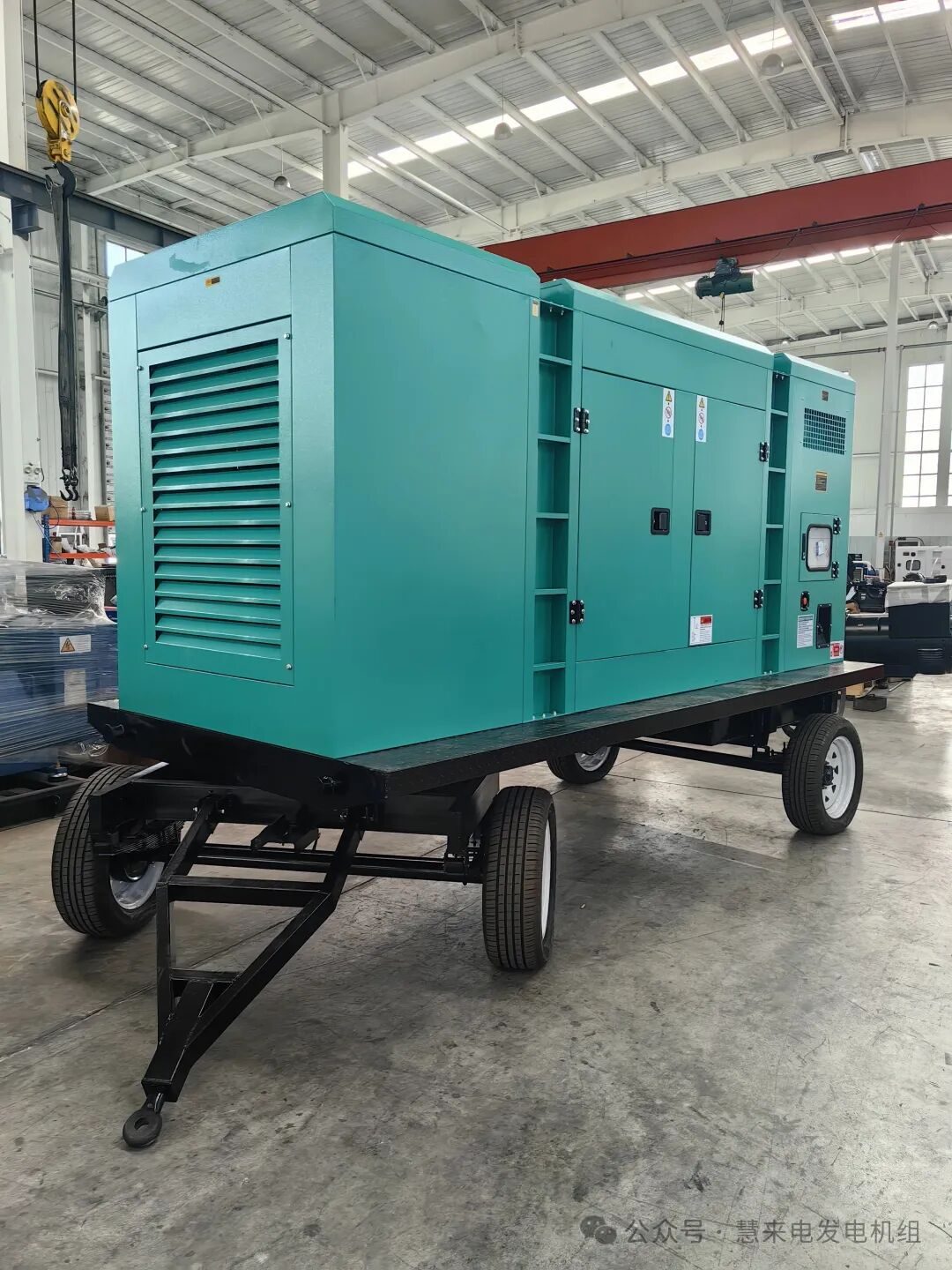

Mobile trailer type
Road-towable power for events, rental and emergencies
Scope of supply
Standard & optional configuration, real warranty terms
Standard configuration
- Internal combustion engine (diesel / gas / biogas)
- AC synchronous alternator
- Radiator, cooling fan and fan guard
- Output air circuit breaker and standard control panel
- Air / fuel / lube-oil filters, starter motor, charging alternator
- Starting batteries with connection cables
- Industrial silencer with standard fittings
- Steel base frame with anti-vibration rubber mounts
- Documentation: OEM engine & alternator files, genset manual, test report
Optional configuration
- Lube oil, diesel, antifreeze, anti-condensation heater
- Battery float charger
- Self-protecting / auto-start control panel
- Control panel with remote monitoring / signalling / control
- ATS automatic load transfer panel
- Day fuel tank (separate) or base fuel tank (integral)
- Rainproof or silent canopy
- Silent mobile power station (trailer-mounted)
- CHP heat-exchange system & CHP thermal management control
Warranty
12 months from arrival on site or 2,000 accumulated running hours, whichever comes first. Free repair or replacement for quality issues (wear-and-tear parts, consumables, man-made damage and neglected maintenance excluded); paid service available across the whole life cycle. Delivery by self-pickup, truck, or combined truck-ship transport.
Mission critical
Data-center grade diesel solutions
- G3-standard gensets dedicated data-center diesel generators
- Dual fuel supply redundant fuel path for continuous availability
- Harmonic suppression excellent behaviour under non-linear and capacitive loads
- 2N architecture mains + genset via ATS, dual UPS, dual-busbar distribution to PDU racks
